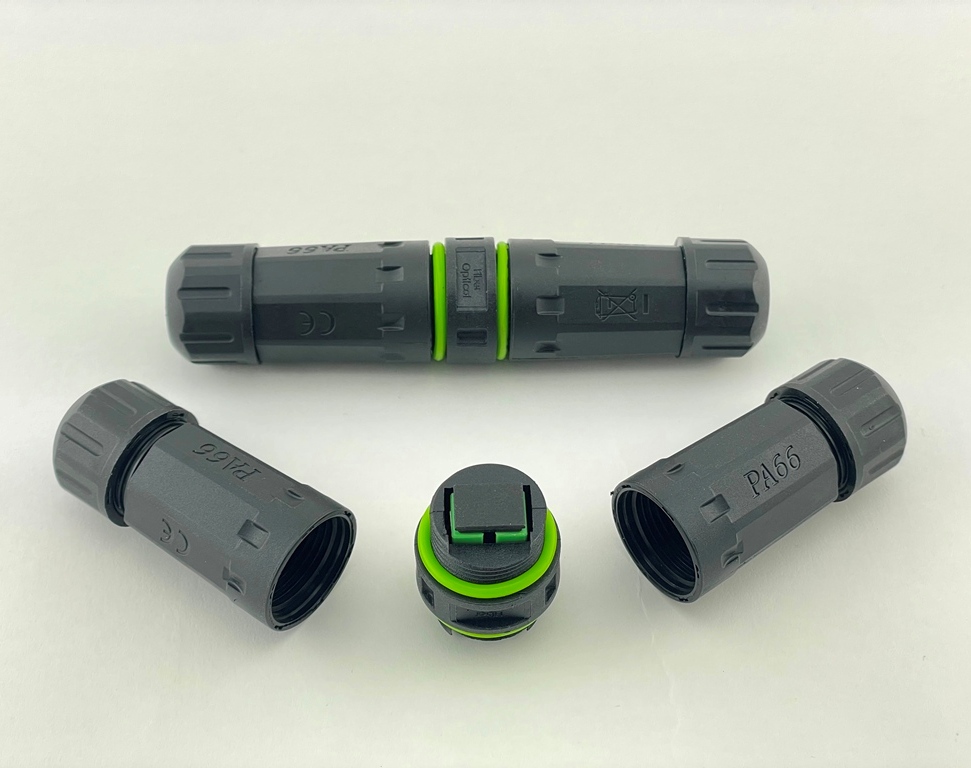

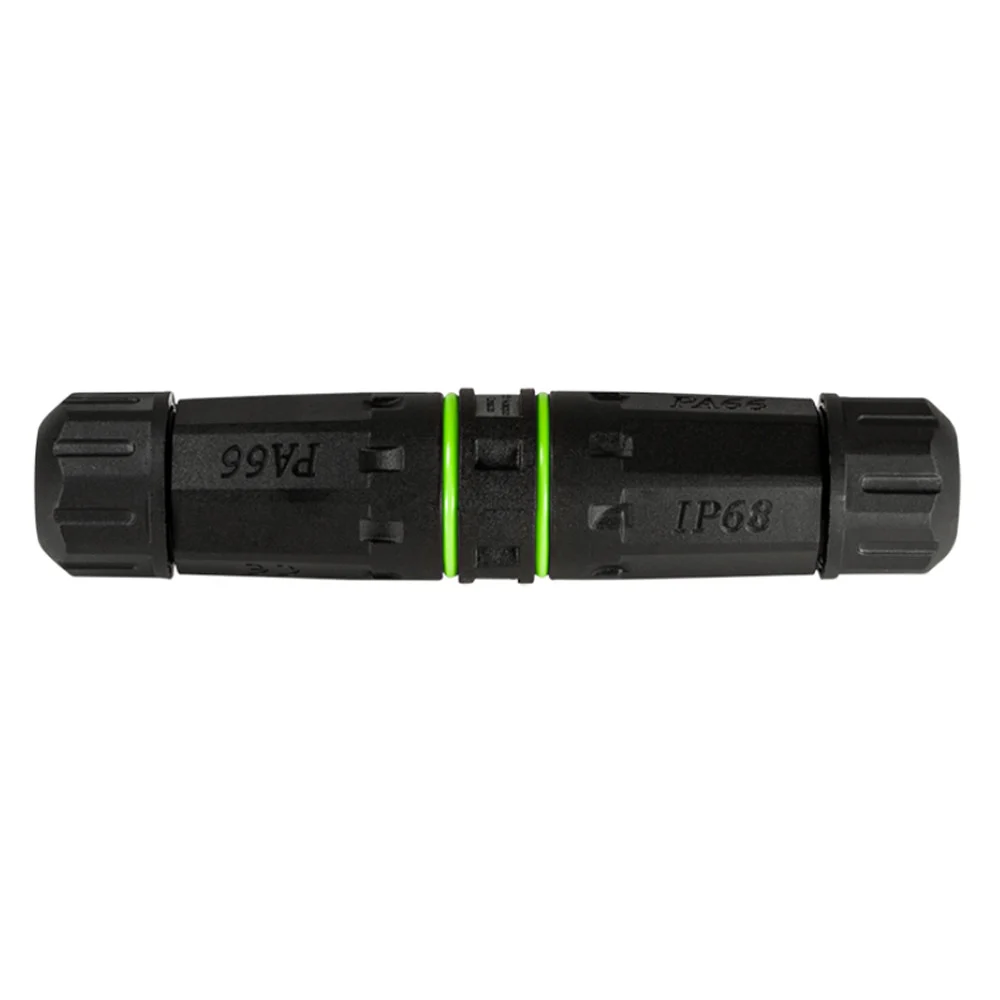

IP68 Waterproof Simplex SC Fiber Optic Connector with Two Cable Glands
IP68 Waterproof Simplex SC Fiber Optic Connector with Two Cable Glands
- Rugged and durable fiber optic connector with connections to 10G SC Simplex
- With dust and liquid protection, waterproof according to IP68; Suitable for industrial or harsh environments

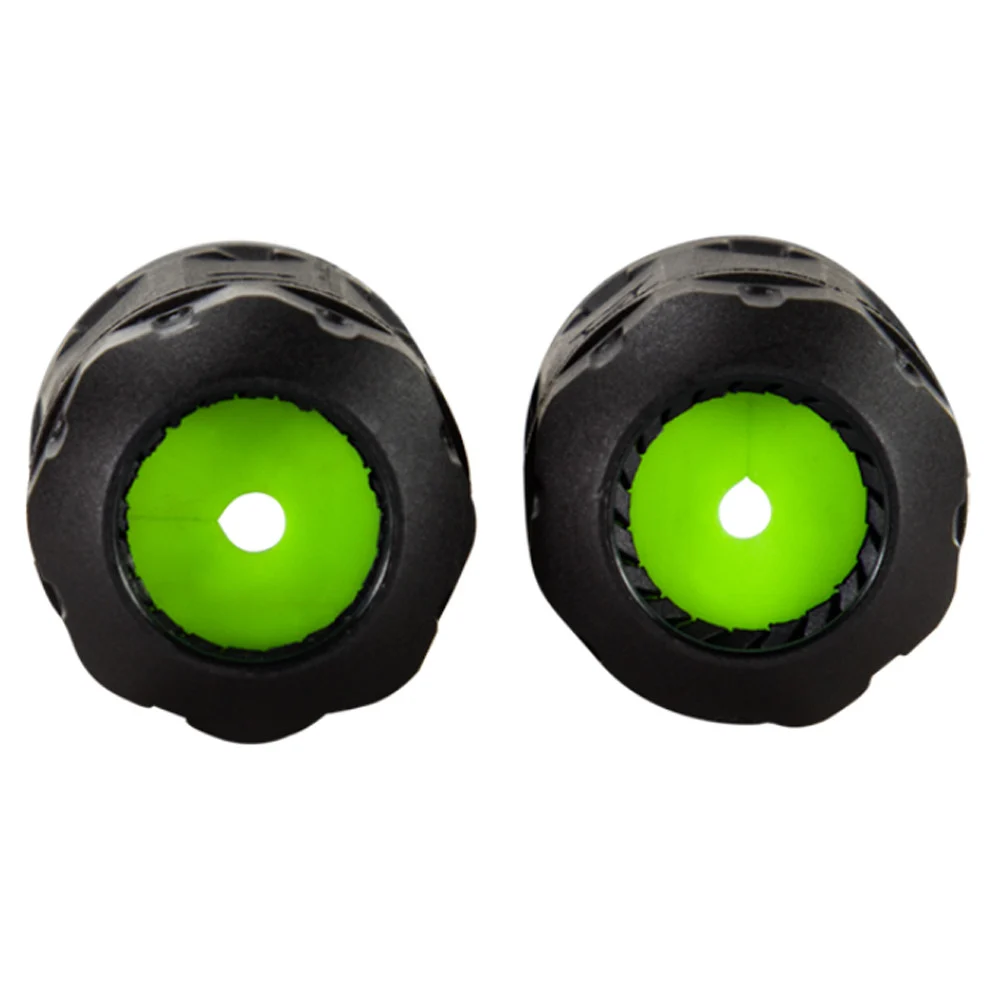

- With cable gland on both sides
- Maximum insertion loss: 0.2 dB; For cables with a diameter of 1.0 to 3.5 mm
Description
A waterproof simplex SC connector is a ruggedized fiber optic termination designed to protect connections against moisture, dust, and harsh environmental conditions. Rated for IP68 environments, they utilize hardened housings, O-rings, and heavy-duty cable glands to maintain network reliability in outdoor or industrial settings.
Key Types
- Hardened/Mini-SC (e.g., OptiTap-compatible): Common in FTTx (Fiber to the x) networks, this design integrates a standard SC/APC or SC/UPC ferrule into a heavy-duty, push-pull housing for rapid, tool-free deployment.
- Field-Installable Glands: These protect standard SC patch cables by routing the connector through a protective shroud and tightening waterproof sealing nuts.

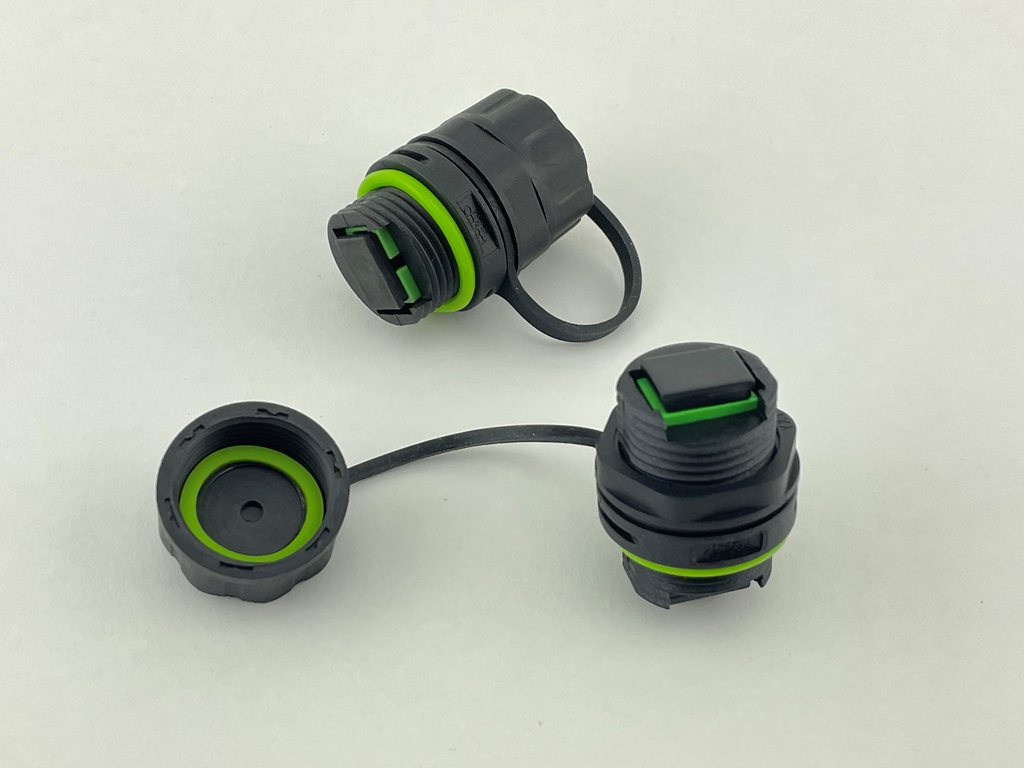

- Bulkhead/Panel Mount Adapters: Used to pass a waterproof fiber connection through a wall, enclosure, or case
Core Specifications
- Ingress Protection: IP67 or IP68 ratings for dust and water submersion.
- Interface: Available in both Singlemode (usually with green SC/APC polishes) and Multimode (beige or blue SC/UPC).
- Locking Mechanism: Quarter-turn bayonet or push-pull locking systems to secure mating and prevent accidental disconnection.
