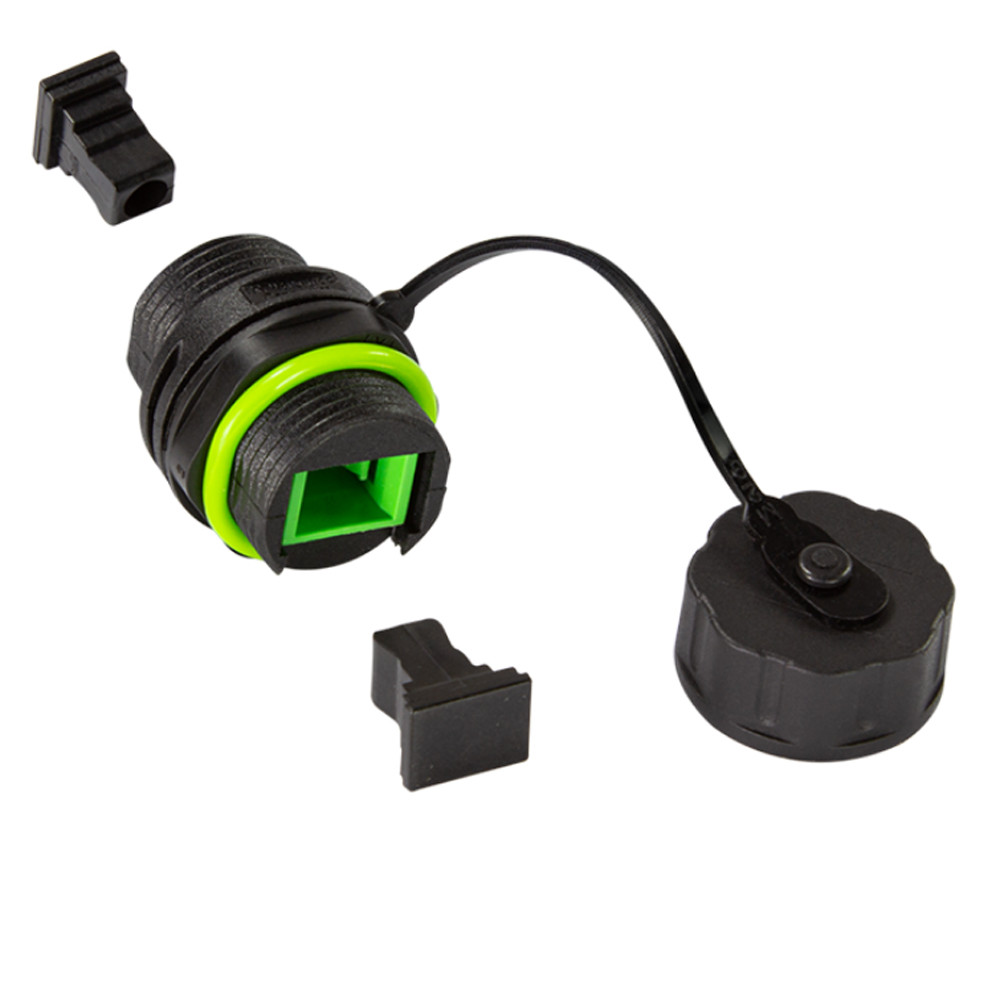

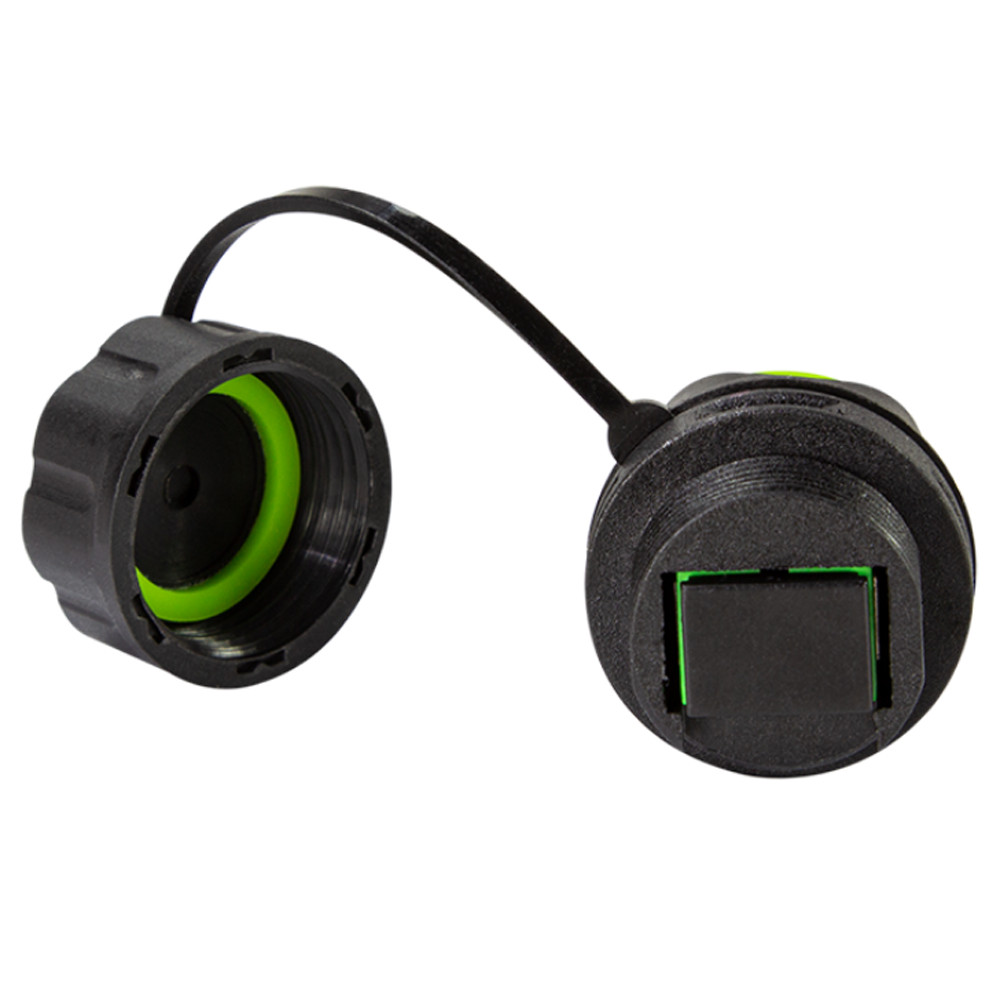

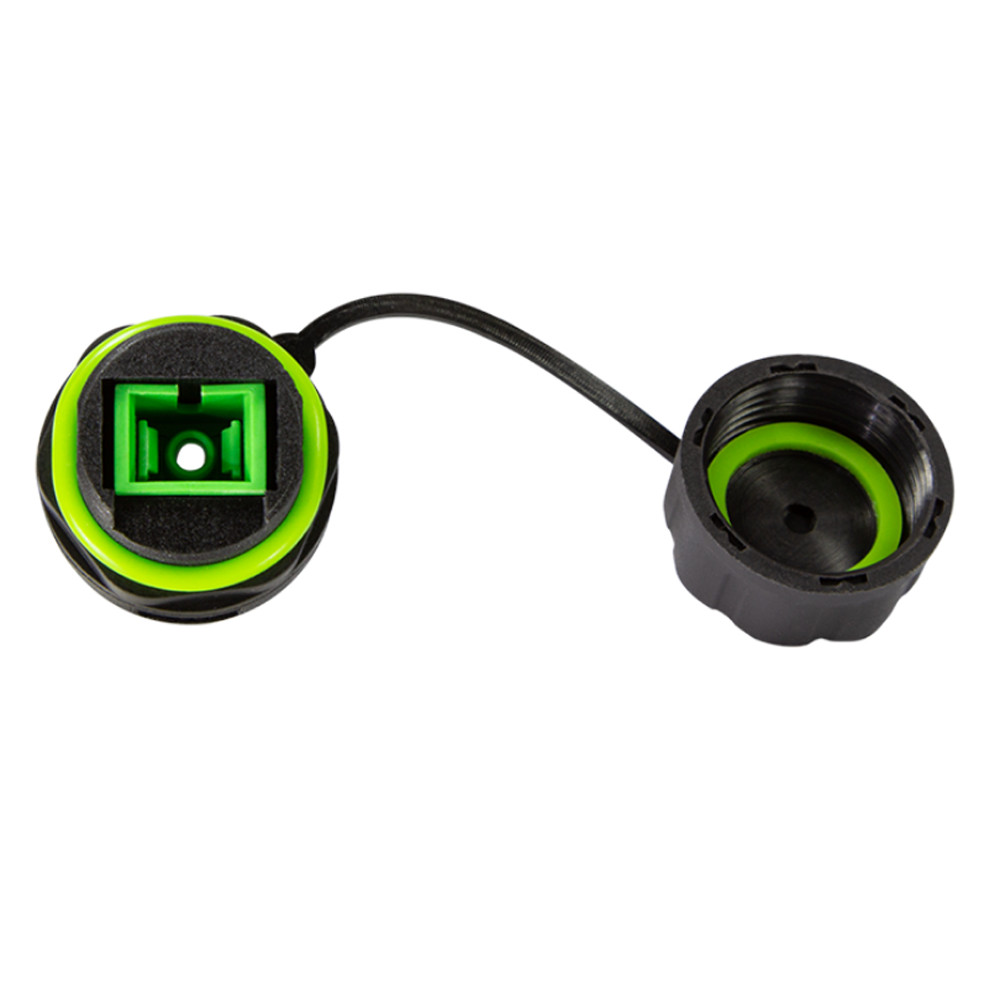

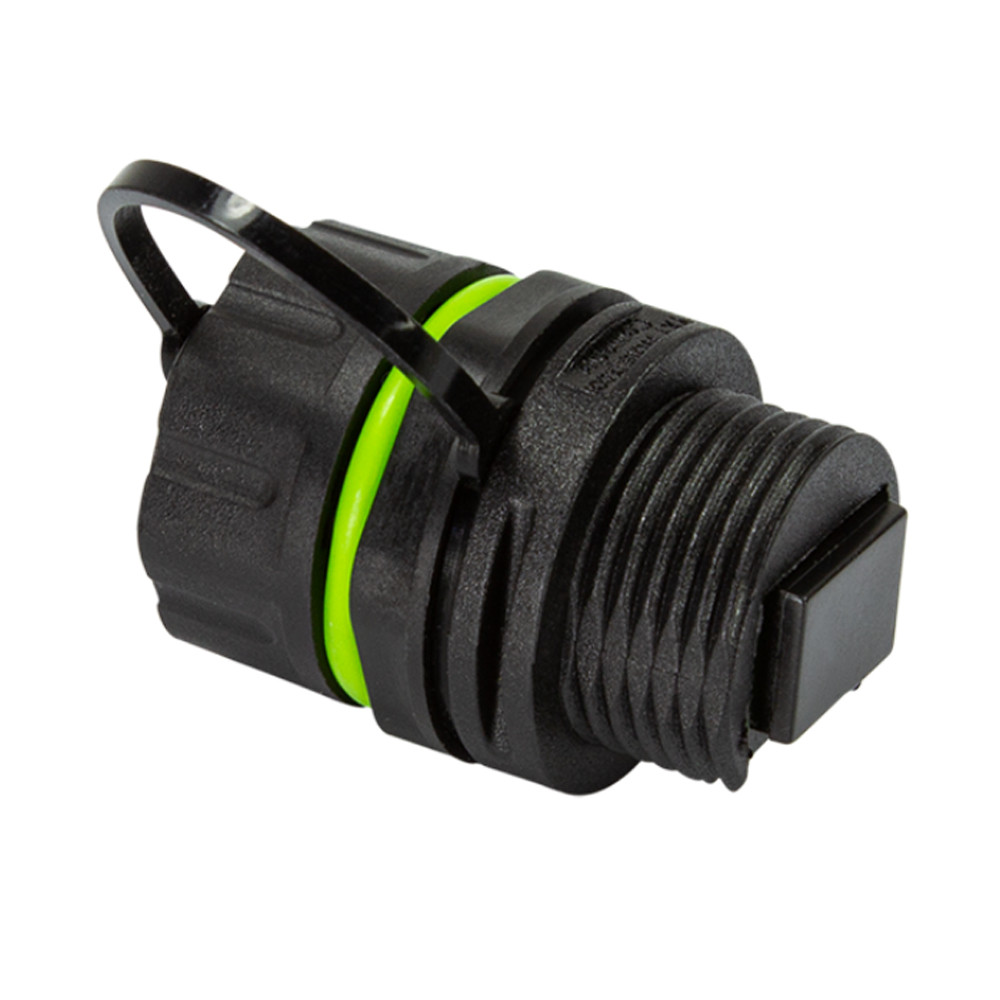

IP68 Waterproof Simplex SC Fiber Optic Connector with Dust Cap
Item No. AP54A-SC
These rugged, weatherproof connectors allow fiber optic patch cables with LC or SC connectors to be connected even in harsh environments. IP68-certified cable housings are ideal for 10 Gbit/s fiber optic cabling in industrial or outdoor environments.
Technical Specifications.
- For 10G fiber optic connections with duplex SC-Simplex connectors
- For harsh or industrial outdoor environments
- With dust cap to protect the socket when not in use
- With dust and liquid protection, waterproof according to IP68 protection class
- For mounting on plate or housing
- Maximum insertion loss: 0.2 dB
- Built-in SC-Simplex adapter, color green
- Housing: PA66, 94 V-2, black color
Description
A waterproof simplex SC connector is a ruggedized fiber optic termination designed to protect connections against moisture, dust, and harsh environmental conditions. Rated for IP67 or IP68 environments, they utilize hardened housings, O-rings, and heavy-duty cable glands to maintain network reliability in outdoor or industrial settings.
Key Types
- Hardened/Mini-SC (e.g., OptiTap-compatible): Common in FTTx (Fiber to the x) networks, this design integrates a standard SC/APC or SC/UPC ferrule into a heavy-duty, push-pull housing for rapid, tool-free deployment.
- Field-Installable Glands: These protect standard SC patch cables by routing the connector through a protective shroud and tightening waterproof sealing nuts.
- Bulkhead/Panel Mount Adapters: Used to pass a waterproof fiber connection through a wall, enclosure, or case.
Core Specifications
- Ingress Protection: IP67 or IP68 ratings for dust and water submersion.
- Interface: Available in both Singlemode (usually with green SC/APC polishes) and Multimode (beige or blue SC/UPC).
- Locking Mechanism: Quarter-turn bayonet or push-pull locking systems to secure mating and prevent accidental disconnection.
