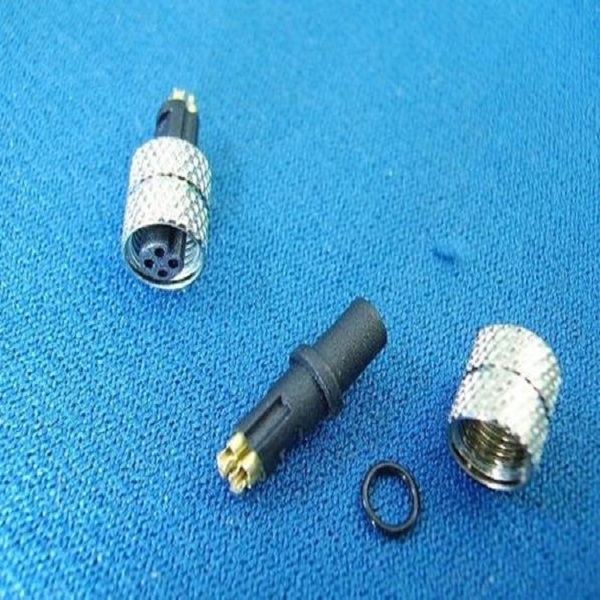

M5 4Pin Female Connector
The most well-knit connector type in the M series range, our M5 connectors come in straight and angled forms with overmolded cable connector options and a variety of panel mount receptacles. This compact type of connector is suited to automotive, process control, commercial electronics & instrumentation application which rely on reliable and robust miniature sensors.
Item No. : WP-04F2-49
Features :
- M series Circular Connector for Cable Assembly
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Female Connector |
| Coding | A code |
| Orientation | Straight |
| Wire Termination | Soldering |
| Housing Material | TPU, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Satin Nickel plated |
| Rated Current | 1A |
| Rated Voltage | 60V |
| Waterproof Rating | IP67 |
| Operation Temperature | -20℃ ~ 85℃ |
