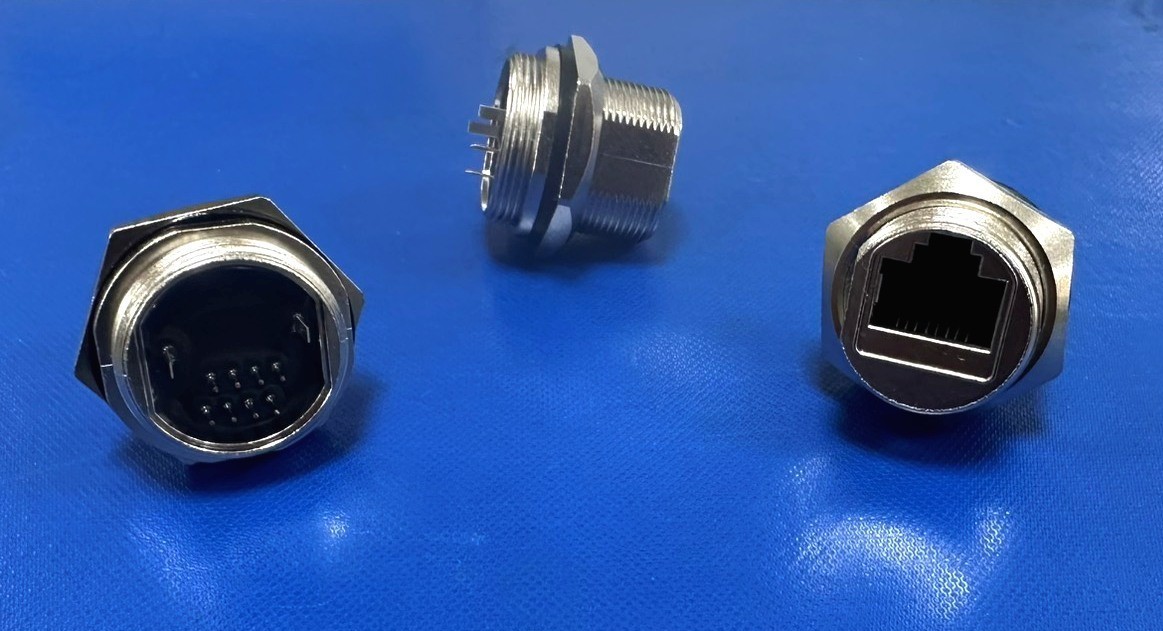

Waterproof RJ45 Female Shielded Panel Mount Connector
The connector is metal shielded and suitable for use in environments where EMI interference might be a concern. For Cat6 ethernet connections, this panel-mount connector is a high-quality solution.
Item No. : RJ-08F2-26-11
Features :
- Female RJ45 Connector for PCB
- Easy to install onto predrilled panels and machine housing
- 13/16″-28 UNS thread and have a recommended panel thickness range of 0.8 mm to 8.0 mm
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Applications:
RJ45 connectors and cables are typically used for internet connections, forming either local area (LAN) or wide area (WAN) networks. As it is protected from environmental ingress, it is suitable even for outdoor purposes, which means it has a wide range of uniquely challenging applications, such as
- Wireless outdoor AP
- Outdoor LED and display lighting
- Marine
- Automotive
- Military
Description
Upgrade your connectivity with our all metal waterproof RJ45 shielded panel jack. Designed for durability and reliability, it features an IP68 rating to protect against dust and water, ensuring optimal performance in any environment. Perfect for seamless integration with compatible devices, this panel jack is your go-to solution for secure and efficient networking.
| No. of Contacts | 8 Pins |
| Connector Gender | Female Connector |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Phosphor Bronze with gold plated |
| Shell Material | Zn Alloy with Nickel plated |
| Ground Material | SUS 301 with Nickel plated |
| O-ring Material | Silicone, Black |
| Nut Material | Brass with Nickel plated |
| Wire Termination | PCB Soldering |
| Rated Current | 1.5A |
| Rated Voltage | 125V AC |
| Waterproof Rating | IP67 |
| Operation Temperature | -40°C ~ 85°C |
