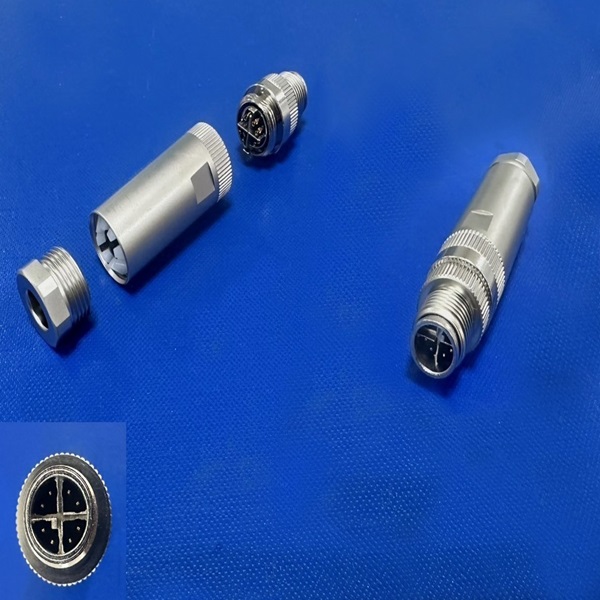

M12 X-code 8Pin Male Assembly Type Connector
This M12 X-Code connector is used for replacements, upgrades, and installations used in industrial automation, automobile manufacturing, factory automation machines, and harsh environment applications. M12 X-Code connectors have 8 pins which allows up to 10 Gbps data transmission. The entire product line is IP67-rated when installed, adding to the reliable nature of these connectors in an industrial environment.
Item No. : WP-08M2-149-11
Product Features:
- High-Speed Data: Supports fast data transmission for Ethernet and industrial applications.
- Secure & Compact: Provides a stable connection in a compact 12mm design.
- Rugged & Versatile: Built to withstand harsh conditions for various high-speed applications.
- Power & Data: Combines data and power transmission for a complete solution.
- Easy Install: User-friendly design for quick setup.
- Compatibility: Works seamlessly with other M12 connectors.
Description
Meet our M12 X-code connector, designed for fast, reliable industrial and Ethernet connections. Its compact, rugged design ensures secure, high-speed data transmission. Whether it’s sensors, cameras, or Ethernet devices, this connector is tailored for modern applications, offering seamless performance and dependability.
| No. of Contacts | 8 Pins |
| Coding | X Code |
| Connector Gender | Male Connector |
| Orientation | Straight |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with 10u” gold plated |
| Nut Material | Aluminium Alloy |
| Shell Material | Brass with Nickel-plated |
| X-shell Material | Zn Alloy with Nickel-plated |
| O-ring Material | EPDM, Black color |
| Ground Material | Brass with Nickel-plated |
| Main Body Material | Aluminium Alloy Satin Nickel-plated |
| Gland Material | Silicone |
| Gland cage Material | POM, Block color |
| Gland Nut Material | Aluminium Alloy Satin Nickel-plated |
| Rated Current | 0.5A |
| Rated Voltage | 48V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
