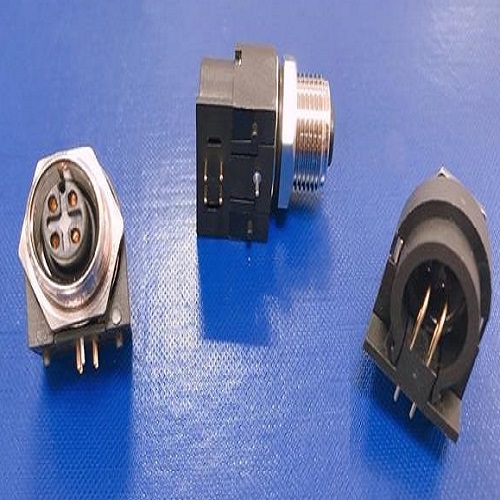

M12 A-code 4Pin Female 90° Front Panel Mount Connector
The standard M12 A-coded is widely used for sensors, DC power, and 1 Gbit Ethernet Applications.
Item No. : WP-04F2-04-11
- M series Circular Connector for PCB
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4 Pins |
| Connector Gender | Female Connector |
| Coding | A code |
| Orientation | Right Angle |
| Wire Termination | Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Nickel-plated overall |
| O-ring Material | EPDM, Black |
| Rated Current | 5A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
