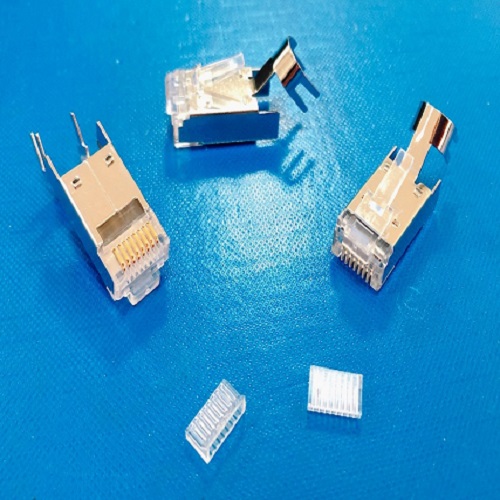

Cat.6 STP Herose Modular Plug
8P8C connectors are commonly used in computer networking applications, where interconnecting cables are terminated at each end with an 8P8C modular plug, wired according to TIA/EIA standards.
Item No. : PK-7860-88-RD
Features :
- Modular Plug for Network
- Herose Type RJ45 Plug
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| 8×8 | 8 contact positions, all 8 populated with contacts |
| Contact Type | 2 Prongs for Stranded wire |
| Contact Material | Phosphor Bronze with gold plated 50u |
| Housing Material | PC UL94V-2, Transparent Red |
| Voltage Rating | 125V AC at 1.5amps |
| Dielectric Withstanding Voltage | 1000V AC |
| Insulation Resistance | 500 megaohms Min. |
| Termination Resistance | 30 milliohms Max. |
| Durability | 750 cycles |
| Operation Temperature | -40°C ~ 80°C |
