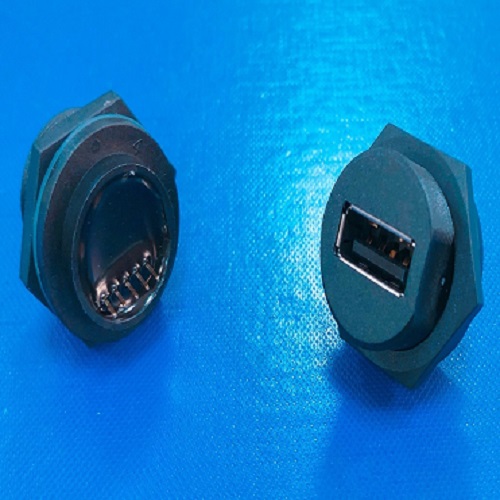

USB2.0 Front Panel Mount Female Connector
Item No. : US-04F3-31-11
Features :
- PCB Mounting USB Connector
- Degree of protection up to IP67 for safe use in harsh environment
- Acceptable for small MOQ order
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| No. of Contacts | 4Pins |
| Connector Gender | Female COnnector |
| Connection Type | Panel Mount, Front Fastened |
| Wire Termination | Soldering |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Phosphor Bronze with gold flash |
| Shell Material | PA66 UL94V-0 |
| Nut Material | PA66 |
| Ground Material | Brass with Nickel plated |
| Gasket Material | Silicon |
| Rated Current | 1.5A |
| Rated Voltage | 250V AC |
| Waterproof | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
