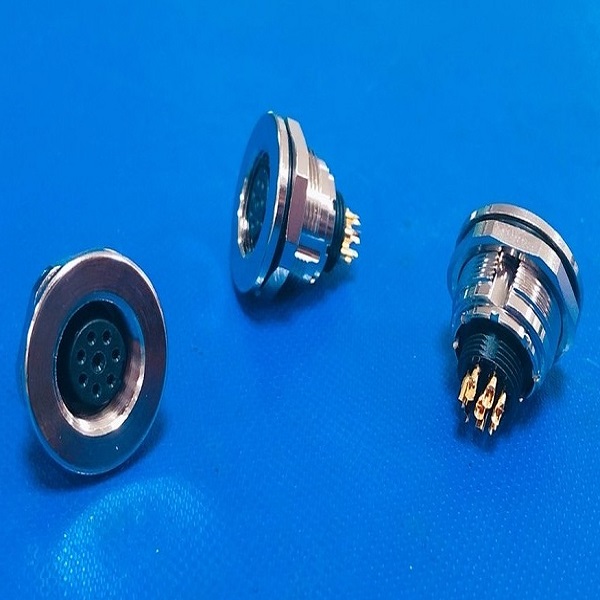

M9 8Pin Female Rear Panel Mount Connector
The M9 is a miniaturized connector used in factory automation, process control, industrial instrumentation, and commercial electronics. These ultra-small M9 connectors have 2 to 8 contacts and can be used for panel mounting or as cable connectors.
Item No. : WP-08F2-131-11
Features :
- Reliable, robust, and versatile connectivity solutions for industrial automation applications
- Environmental protection up to the IP67 standard
- Compact and lightweight plastic or metal shell connectors
- Available as field-installable connectors, receptacles, or with overmolded cables
- All connectors are available with gold-plated contacts for higher conductivity
- Alternative mount arrangements for solder cup or PCB
Description
| No. of Contacts | 8 Pins |
| Connector Gender | Female Connector |
| Orientation | Straight |
| Housing Material | PA UL94V-0, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Nickel plated |
| Shell Material | Brass with Nickel plated |
| O-ring A Material | Black Silicone |
| O-ring B Material | EPDM |
| Rated Current(40℃) | 1A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
