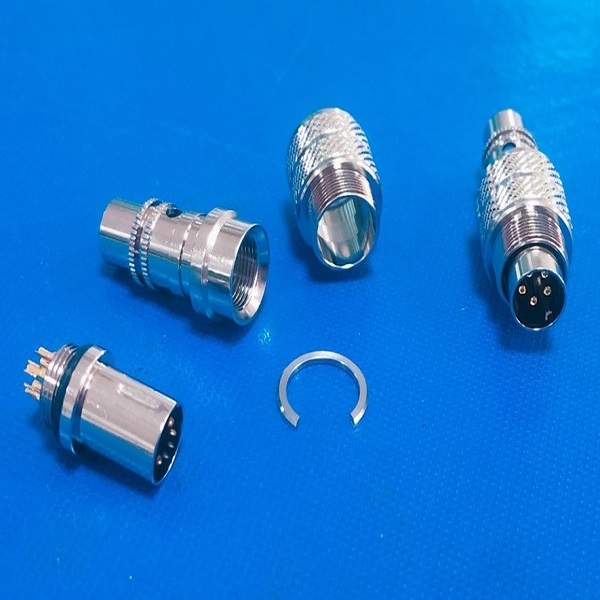

M9 5Pin Male Connector
M9 female circular connector has socket type connection. This panel mount connector has a voltage rating of 125V and a current rating of up to 4A per contact.
Panel plugs and sockets feature a keying groove for anti-rotation so they may be either mounted into the appropriate panel hole (details above) or mounted straight into a 12mm hole (with no key tongue) and fixed with the flange plate kit.
Item No. : WP-05M2-191-11
Features & Benefits:
- Control systems
- Electrical equipment
- Power distribution
Description
| No. of Contacts | 5 Pins |
| Connector Gender | Male Connector |
| Orientation | Straight |
| Housing Material | PA UL94V-0, Black |
| Contact Material | Brass with gold flash |
| Nut Material | Brass with Nickel plated overall |
| Shell Material | Brass with Nickel plated overall |
| O-ring Material | EPDM |
| Rated Current(40℃) | 3A |
| Rated Voltage | 125V |
| Waterproof Rating | IP67 |
| Operation Temperature | -25℃ ~ 70℃ |
