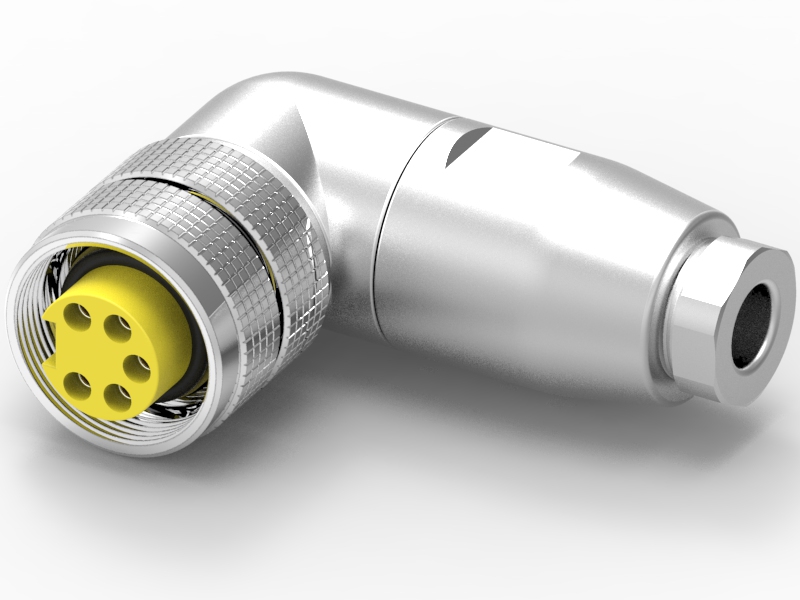

M23 5Pin Female 90° Field Attachable Screw-in Type Connector
M23 Screw-in Type Field Attachable Connectors are passive devices for use with raw cable. Available in male and female versions, this 5-pin models allow for easy assembly of custom cables on the plant floor.
Item No. : WP-05F2-115-11
Description
M23 refers to the thread type used in connecting the cable plug & receptacle, which is versatile due to its robust design, and the combination of power and signal pins built into the design. Our connectors are currently available in 3, 4, and 5 poles, with both straight, and right-angle Configurations and physically keyed to prevent wiring mishaps.
The classic M23 power connector covers a huge range of applications. With a power transmission of up to 20A/250V, this connection system can handle a lot more challenges. The range includes numerous casing designs: Cable connectors, coupling connectors, device connectors, and angle connectors. The Connectors are available as screw plugs, or with quick release.
| No. of Contacts | 5 Pins |
| Connector Gender | Female Connector |
| Orientation | 90° |
| Housing Material | PBT UL94V-0, Black |
| Contact Material | Brass with gold plated |
| Nut-A Material | Brass with Sating Nickel plated overall |
| Nut-B Material | Aluminum Alloy with Sating Nickel plated overall |
| O-ring A Material | EPDM |
| O-ring B Material | Silicone, Black |
| O-ring C Material | Silicone, Black |
| Spring A Material | Phosphor Bronze |
| Spring B Material | Stainless Steel |
| Shell | Brass with Sating Nickel plated overall |
| Main Body | Aluminum Alloy with Sating Nickel plated overall |
| Gland | Silicone |
| Gland cage | POM, white |
| Rated Current | 20A |
| Rated Voltage | 250V |
| Waterproof Rating | IP67 |
| Operation Temperature | -40℃ ~ 85℃ |
