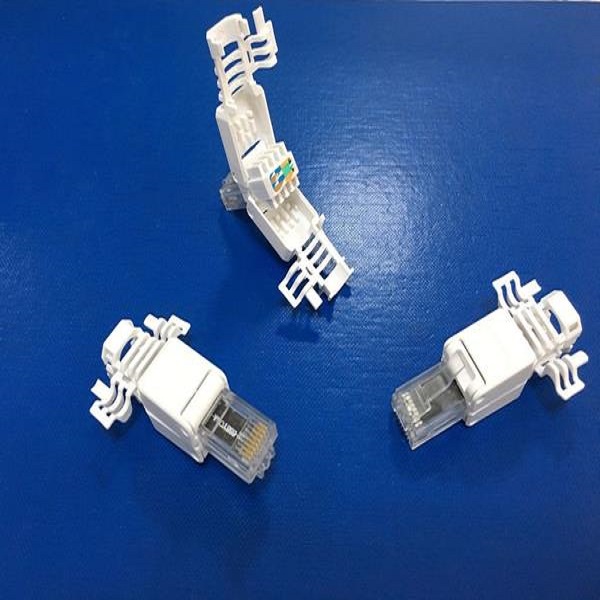

CAT.6A Toolless Modular Plug
8P8C connectors are commonly used in computer networking applications, where interconnecting cables are terminated at each end with an 8P8C modular plug, wired according to TIA/EIA standards.
Item No. : RJU06A-88-WH
Features :
- Modular Plug for Network
- OEM & ODM orders are welcomed to meet your customized requirement
Description
| 8×8 | 8 contact positions, all 8 populated with contacts |
| Plastic Material | PC UL94V-0 |
| IDC Material | PC |
| Contact Material | Phosphor Bronze with gold plated |
| Contact Life | 750 Times Min. |
| IDC Life | 250 Times Min. |
| Color | White |
| Wire Type | 23AWG ~ 24AWG |
| Contact Resistance | 20M Ohm Max. |
| Insulation Resistance | 250M ohm at 500V DC |
| Dielectric Withstanding Voltage | DC 1000V AC 700V RMS 60Hz |
