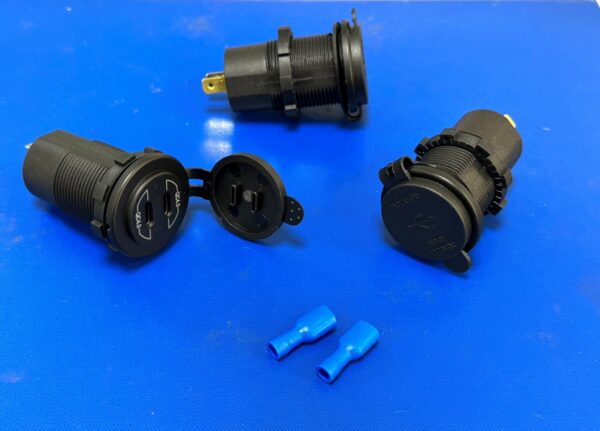

Dual USB Type C QC4.0 Charger
USB-C is the emerging standard for charging and transferring data, which also features a smaller and reversible connector type.
Item No.: USB2C-QC4.0-BK
Features :
- Provide one interconnect solution for data, power, and A/V
- Designed with a flippable and reversible mating interface
- Backward compatible with other USB connectors using converter cables or adaptors
Description
| USB Type | Type C |
| Number of USB port | 2 |
| Connector Style | Adapter |
| Normal Voltage | 24VDC |
| Operating Voltage | 9V – 30VDC |
| Peak Voltage | 34 VDC |
| USB Type C-1 output | 5V/3A/15W,9V/3A/27W,15V/3A/45W,20V/3A/60W |
| Current Draw Quiescent current | 5MA |
| Lifetime | 5000 operating cycles |
| Sealing | IP65 |
| Terminals | Copper/ nickel plating 1/4″(6.3mm) |
| Operating Temperature | -20°C – 80°C |
| Panel Opening | 29.2 x 26.2 mm |
| Low-voltage protection | yes (lower than 40V) |
| Over current protection | yes |
| Over Temperature protection | yes |
| Short circuit protection | yes |
| Reverse polarity protection | yes |
